Hemispherical Solar Condenser Lens for Improving the Condensing Efficiency
Július 25, 2018
Name : Hemispherical Solar Condenser Lens for Improving the Condensing Efficiency
Lens : Multi Array Spher Fresnel Lens
We recieved a request about optical design and lens production. This product was designed in shape of hemisphere to increase the surface and time illuminated without tracking devices while enclourse is fixed.

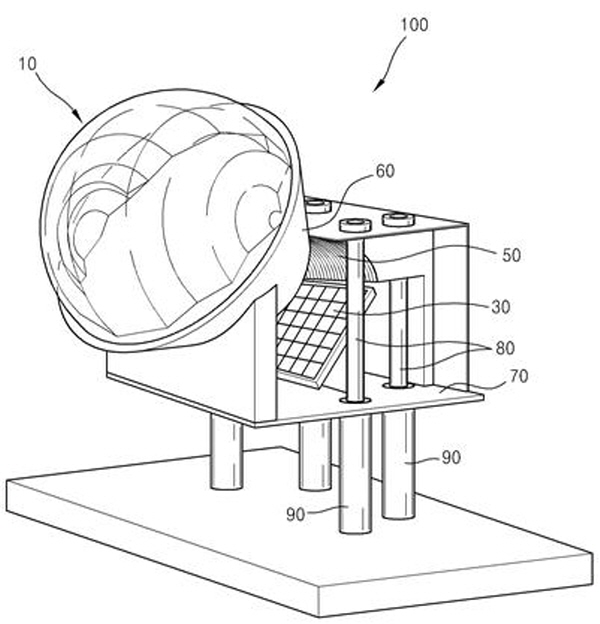

< View of full enclosure >

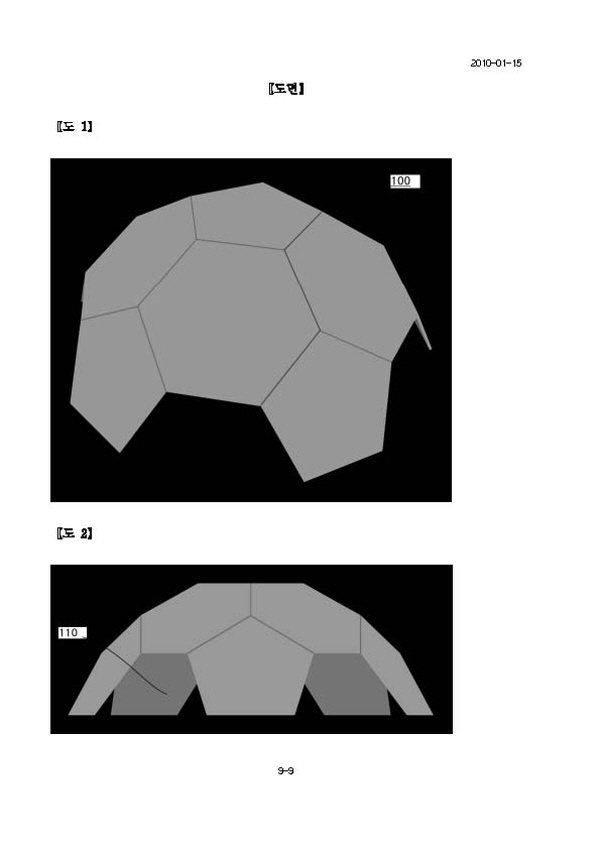

Hemispherical lens is used in the front as shown in the picture. If lens were produced in this manner, the surface area illuminated would increase and operating hour would be long. DIYPRO developed the lens designed as you can see in the above photo in 2009, applied for a patent for it.

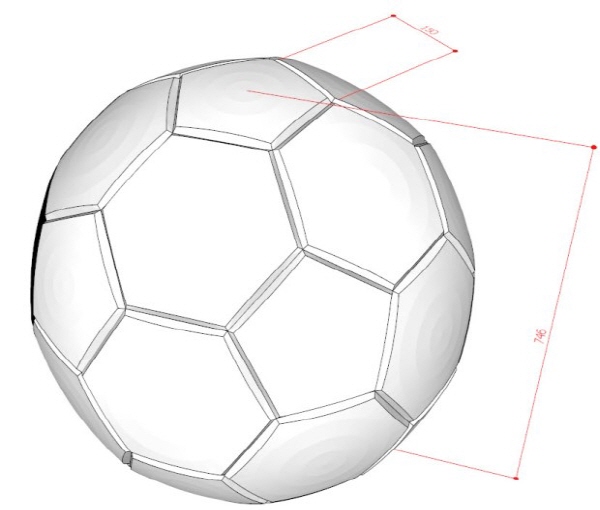

The figure below shows the size of the lens designed in consideration of the size of the overall size of the cells in the Enclosures.
The form used in real is is the hemispherical lens, its diameter is 746mm, and height is 373mm. You can change its size.
DIYPRO is a professional company that specializes in the design and delivery of various optical lens solution. We provide one-stop solutions from design to production, import and produce front surface mirror that is distortion-free and 92-98% high reflectivity.
----
