TMOS00-03 housing for TMOS sensor STHS34PF80(housing only)
Shipping method
Payment options
Our advantages
- Best optical performance at IR
- Qualified with global buyers
- Handful experience with R&D
ColorWHITE
MaterialPoly FIR25
Size22mm
Here is only the purchase of Housing, doesn't include lens！
TMOS00-03 for TMOS EVK
(Protection CAP)
This document specifies TMOS sensor STHS34PF80 from STMicroelectronics and Lens TMOS00-03 from Fresnel Factory Inc.
Dimension of TMOS00-03
Housing for EVK with Back Connector
Please download 3D STP file for 3D printing in link below.
|
Part 1 https://url.kr/3u17iv |
Part 2 https://url.kr/e53lsn |
|
|
|

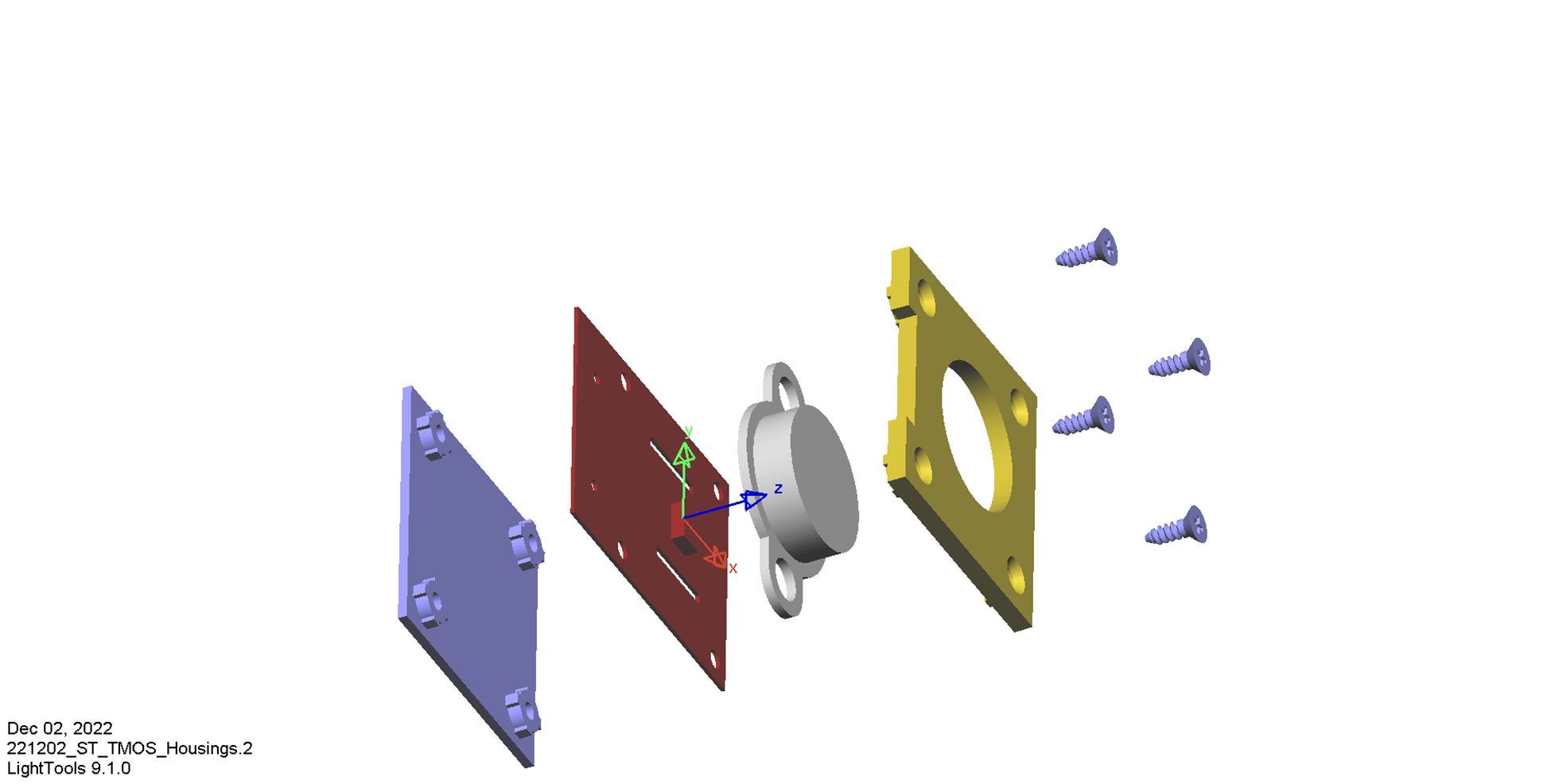

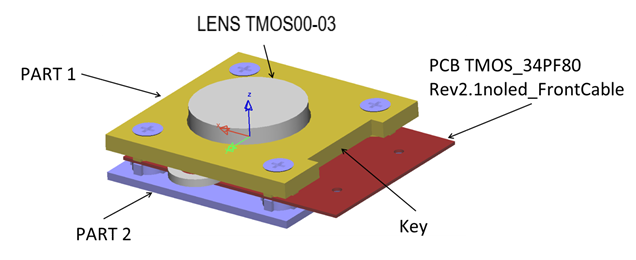

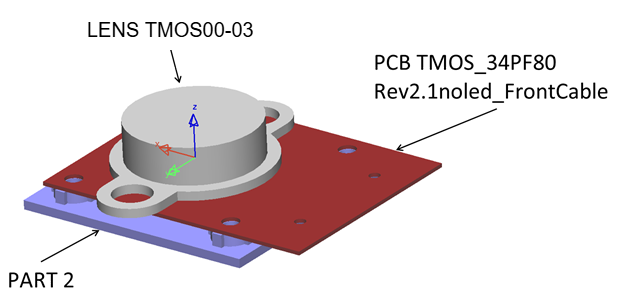

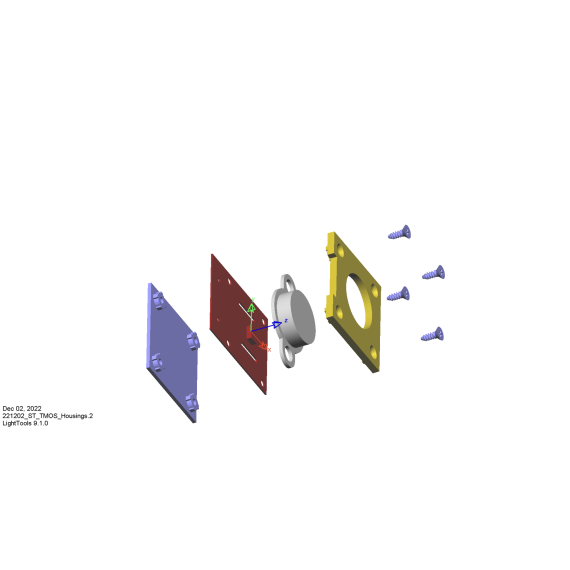

Housing consist two Parts, Part #1 with Directional Key. Key must be faced to the PCB connector (see picture below). Housing fastened by 4 Philips self-tapping Screws M2x8
PCB TMOS_34PF80Rev2.1_noled_FrontCable
