TMOS00-04 for TMOS sensor STHS34PF80(lens only)
Shipping method
Payment options
Our advantages
- Best optical performance at IR
- Qualified with global buyers
- Handful experience with R&D
ColorWarm Grey, Pale blue, Brick Red, WHITE, BLACK
MaterialPoly FIR200
SizeØ4
Lens TMOS00-04 for TMOS sensor STHS34PF80
(2mm form factor, High transmittance, 6 different colors, Laptop, ceiling, presence detector.
Both motion detection and presence detection are possible.
The perfect solution for California Title24.)This document specifies TMOS sensor STHS34PF80 from STMicroelectronics,
PCB TMOS_34PF80Rev2.1_noled_FrontCable, and TMOS00-04 from Fresnel Factory Inc.
TMOS00-04 works as a cover to protect the TMOS sensor from dust, water, and human touch. The cover has a tiny form factor,
which is only a diameter 4mm and 0.25mm distance from the sensor.

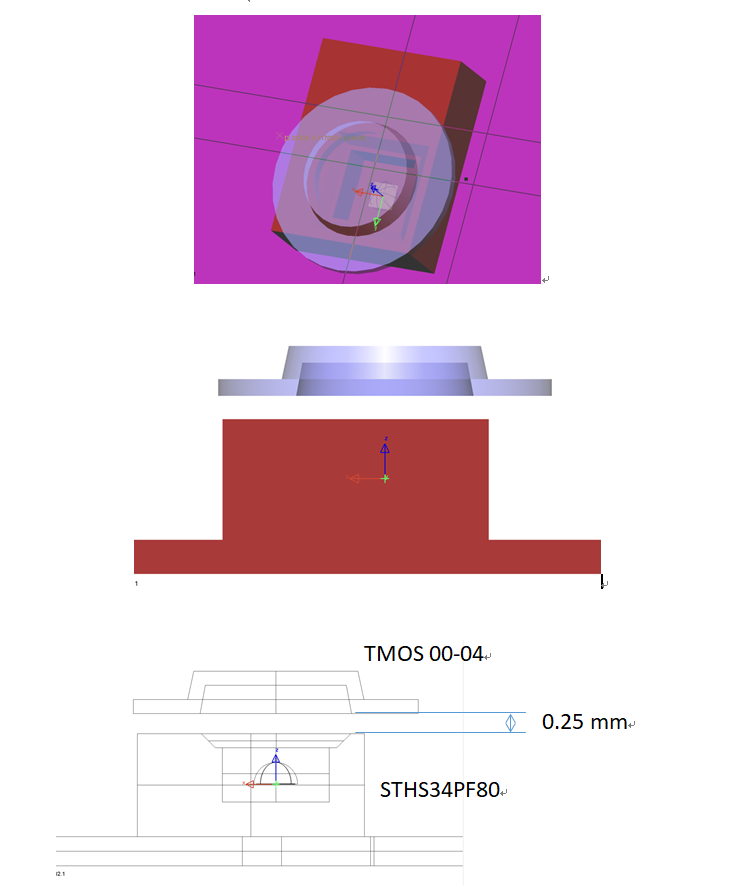

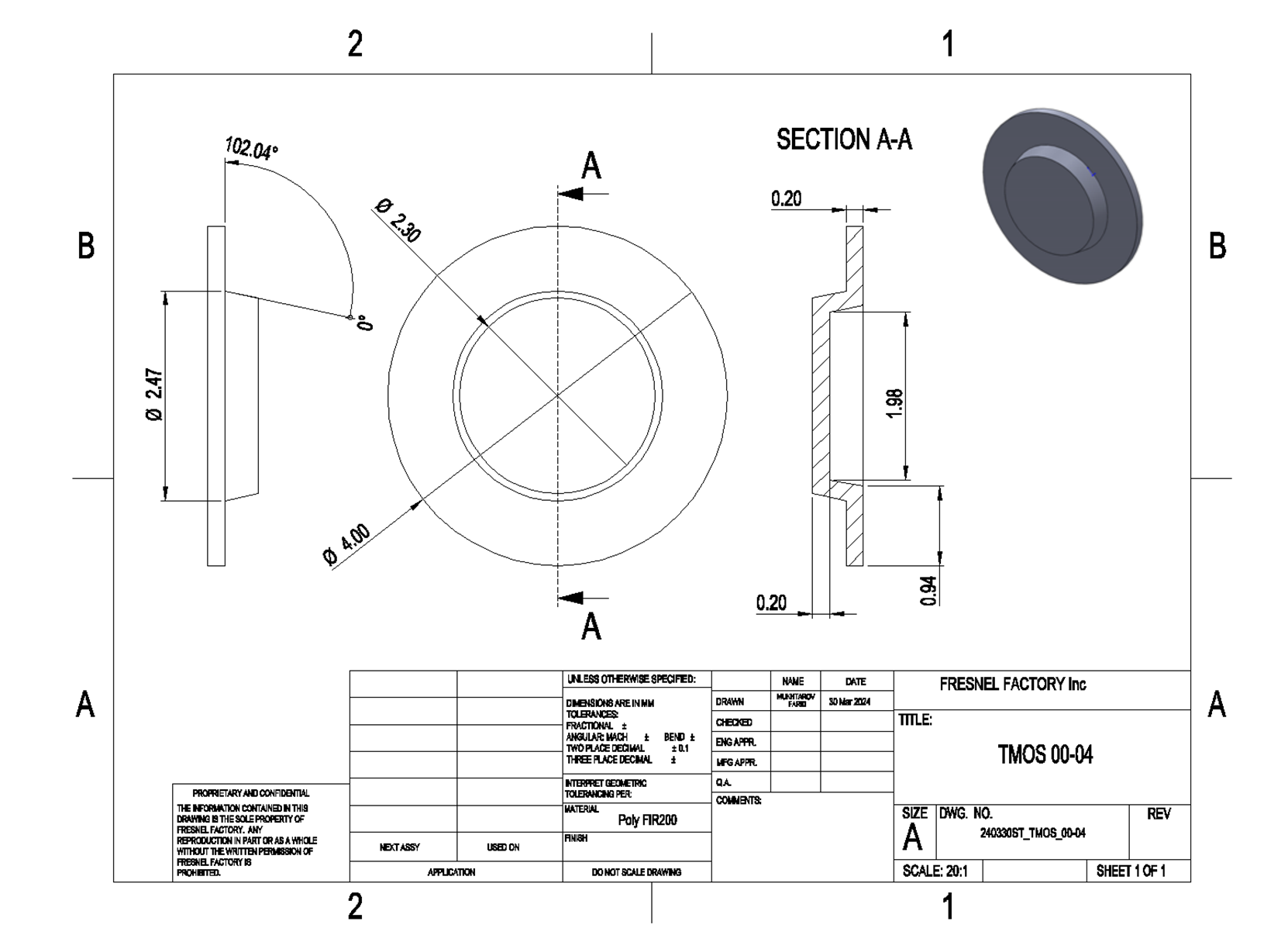

1. Dimension and orientation of TMOS00-04 lens
Please Note that the Center of the Optical Window of the STHS34PF80 must be aligned with the TMOS 00-04 Center.

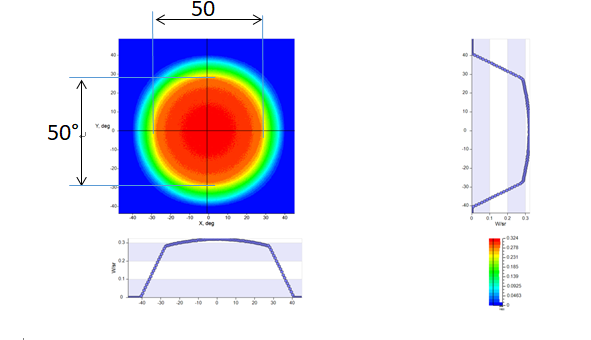

2. Detectable Range and Field of View
TMOS 00-04 changes the Field of View of STHS34PF80 from 80 degree to 50 degree.
This section will be updated.
Assembled Lens TMOS 00-04
