TMOS00-05 housing for TMOS sensor STHS34PF80
Shipping method
Payment options
Our advantages
- Best optical performance at IR
- Qualified with global buyers
- Handful experience with R&D
ColorWHITE
MaterialPoly FIR200
Size5mm
TMOS 00-05 for STHS34PF80
(4mm form factor, High transmittance, 6 different colors, Laptop, ceiling, presence detector)
This document specifies TMOS sensor STHS34PF80 from STMicroelectronics, PCB TMOS_34PF80Rev2.1_noled_FrontCable, and TMOS00-05 from Fresnel Factory Inc.
TMOS 00-05 works as a cover to protect TMOS sensor from dust, water, and human touch. The cover has a tiny form factor, which is only diameter 4mm of exposed cover and 0.25mm distance from the sensor.

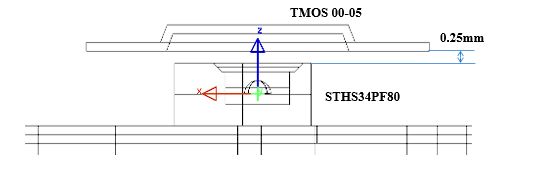

- Dimension and orientation of TMOS00-05 lens
Please Note that the Center of Optical Window of the STHS34PF80 must be aligned with the center of the TMOS 00-05.
- Detectable Range and Field of View
TMOS 00-05 changes the Field of View of STHS34PF80 from xx degree to xx degree.
This section will be updated.
- Housing for EVK with PCB TMOS_34PF80 Rev2.1_noled_FrontCable
Please download 3D STL file for 3D printing in the link below.
|
https://drive.google.com/file/d/14btqQ7ahqR6wWZZbR6ZSN35o9rgpCkuz/view?usp=drive_link |
https://drive.google.com/file/d/1pkgD6n7kd89WYOBfSUL_IK6_SVIWclvj/view?usp=drive_link |

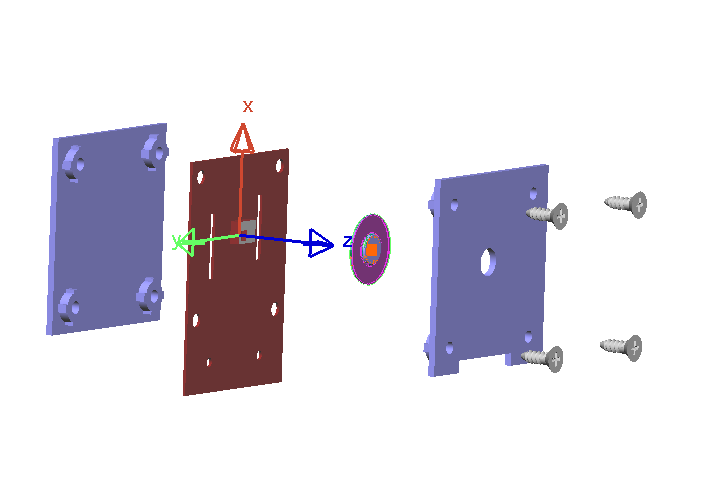

Housing consists 2 Parts with Directional Keys. All keys must be faced to the PCB connector (see picture below). Housing fastened by 4 Philips self-tapping Screws M2x8. (To be updated)
PCB TMOS_34PF80Rev2.1_noled_FrontCable
Assembled Lens TMOS 00-05
