TMOS00-05 housing for TMOS sensor STHS34PF80(housing only)
- Best optical performance at IR
- Qualified with global buyers
- Handful experience with R&D
This document specifies TMOS00-05 cover for TMOS sensor STHS34PF80 from STMicroelectronics, PCB TMOS_34PF80Rev2.1_noled_FrontCable.
TMOS 00-05 works as a cover to protect TMOS sensor from dust, water, and human touch. The cover has a tiny form factor, which is only diameter 4.09mm of exposed cover and 0.25mm distance from the sensor.
To download 2D drawing above, see 4. Related documents
Please Note that the Center of Optical Window of the STHS34PF80 must be aligned with the center of the TMOS 00-05.
To download 3D drawing above, see 4. Related documents
The %transmissivity of TMOS 00-05 is 67.4% compared to TMOS standalone (No Lens).
The FoV value for TMOS00-05 is (-42.1, 47.2) degrees.
To download 3D STL file for 3D printing below, see 4. Related documents
You can also purchase housings without lens from here(Click).

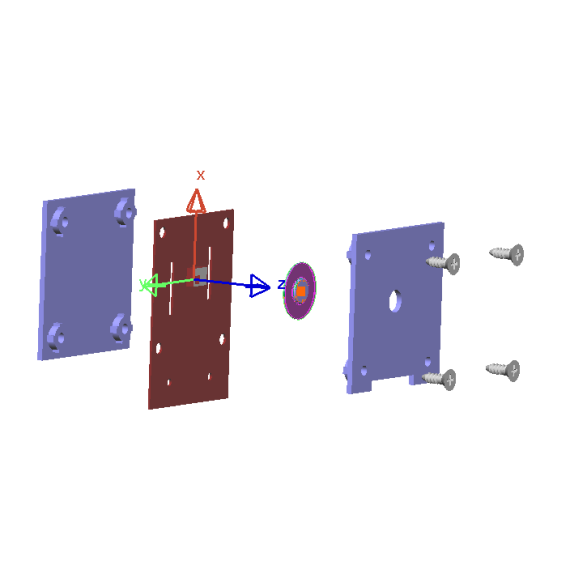

Housing consists 2 Parts. (see picture below).
Housing fastened by 4 Philips self-tapping Screws M2x8.
- 2D drawing
https://drive.google.com/file/d/1dH_cGDNR8_I_mcDIPoboAQqsUBzdFiZR/view?usp=sharing
- 3D drawing with geometric information between lens and sensor
https://drive.google.com/file/d/10r5deszs7CMigktmGfgK-8XeQKvOVcTi/view?usp=drive_link
- 3D printing housing
- Part 1
https://drive.google.com/file/d/14btqQ7ahqR6wWZZbR6ZSN35o9rgpCkuz/view?usp=drive_link
-
- Part 1
https://drive.google.com/file/d/1pkgD6n7kd89WYOBfSUL_IK6_SVIWclvj/view?usp=drive_link
