TMOS10-12030 for TMOS sensor STH34PF80(lens only)
- Best optical performance at IR
- Qualified with global buyers
- Handful experience with R&D
The lens is not included.
----------
Lens TMOS10-12030 for TMOS EVK
(Patented Lens for wall-mounted movement/presence detector, optimized for TMOS sensor)
This document specifies TMOS sensor STHS34PF80 from STMicroelectronics, PCB TMOS_34PF80Rev2.1_noled_FrontCable and Lens TMOS10-12030 from Fresnel Factory Inc.

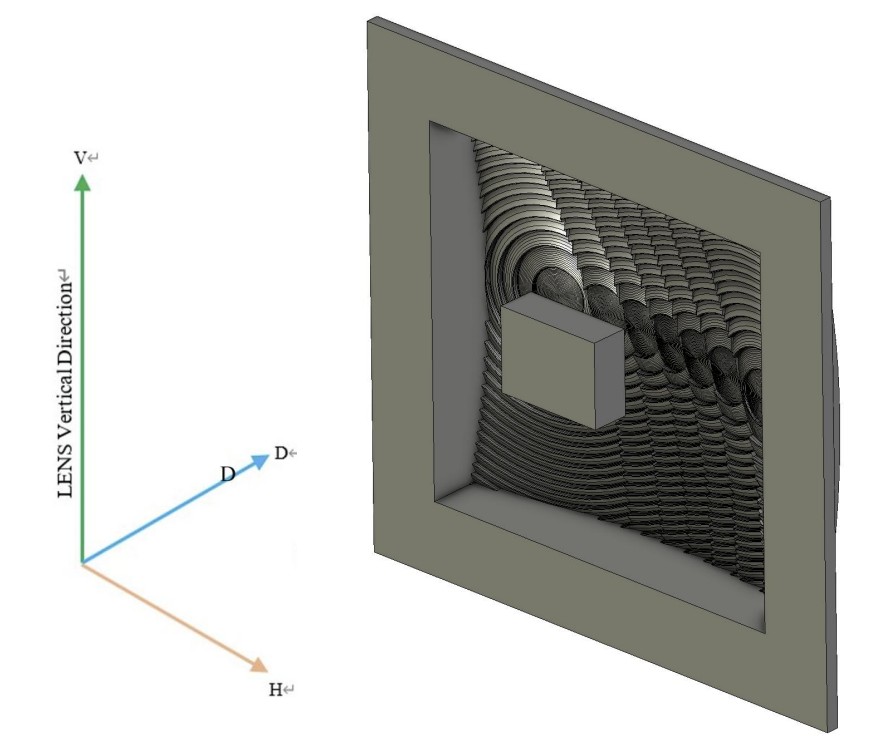

1. Dimension and orientation of TMOS10-12030 lens
To download 2D drawing above, see 4. Related documents
To download 3D drawing above, see 4. Related documents
STHS34PF80 sensor
Please Note, that Center of Optical Window of the Sensor must be coincident with axis of symmetry of the Lens
PCB TMOS_34PF80Rev2.1_noled_FrontCable
4.Related documents
- 2D drawinghttps://drive.google.com/file/d/1KRWnhTdmAdIVd_EzZE9_JRmTw5zJ-zE8/view?usp=sharing
- 3D drawing with geometric information between lens and sensor
https://drive.google.com/file/d/1jxZSI298dnqak0WwkGXdGBJSVZ53CpCp/view?usp=sharing
- 3D printing housing
- Part 1
https://drive.google.com/file/d/1gRLProJSniz-w73UoOP3jUCJCDAWmtuV/view?usp=sharing
- Part 2
https://drive.google.com/file/d/1ifLi_9dXg2PMuxtvUOR00OGqNd8uZ_bV/view?usp=sharing
- Part 3
https://drive.google.com/file/d/1kX6LlXAk8CNt7Qe363yhO-WZ90OMo1x0/view?usp=sharing
