TMOS10-12030 housing for TMOS sensor STHS34PF80（housing only）

$6⁰⁰

Return period: 10 days

+ −

Shipping method

Payment options

Our advantages

Best optical performance at IR
Qualified with global buyers
Handful experience with R&D

Material3D printed Size15.5mm*16.5mm

TMOS10-12030 housing for TMOS sensor STHS34PF80（housing only）, image

Description
Features

The lens is not included.

----------

Lens TMOS10-12030 for TMOS EVK

(Patented Lens for wall mounted movement/presence detector, optimized for TMOS sensor)

This document specifies TMOS sensor STHS34PF80 from STMicroelectronics, PCB TMOS_34PF80Rev2.1_noled_FrontCable and Lens TMOS10-12030 from Fresnel Factory Inc.

Dimension and orientation of TMOS10-12030 lens

Please Note, that Center of Optical Window of the Sensor must be coincident with axis of symmetry of the Lens

Detectable Range and Field of View

Housing for EVK with PCB TMOS_34PF80 Rev2.1_noled_FrontCable

Please download 3D STP file for 3D printing in link below.

Part 1: https://drive.google.com/file/d/1gRLProJSniz-w73UoOP3jUCJCDAWmtuV/view?usp=drive_link

Part 2: https://drive.google.com/file/d/1ifLi_9dXg2PMuxtvUOR00OGqNd8uZ_bV/view?usp=drive_link

Part 3: https://drive.google.com/file/d/1kX6LlXAk8CNt7Qe363yhO-WZ90OMo1x0/view?usp=drive_link

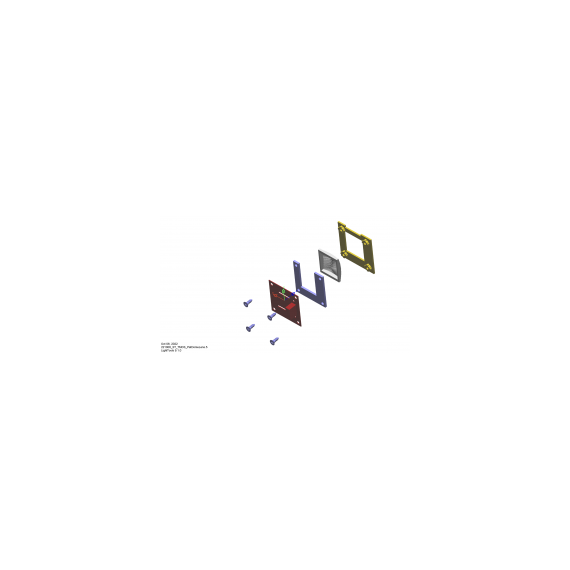

Housing consists 3 Parts with Directional Keys. All keys must be faced to the PCB connector (see picture below). Housing fastened by 4 Philips self-tapping Screws M2x8.

PCB TMOS_34PF80Rev2.1_noled_FrontCable
