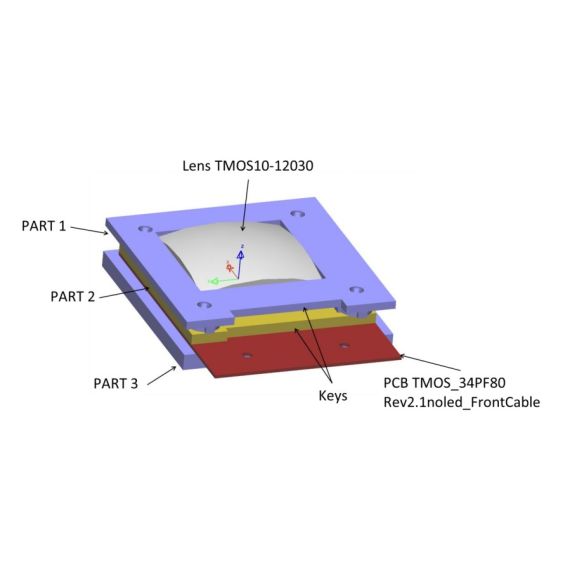

TMOS10-12030_Ver 2 housing for TMOS sensor STHS34PF80（housing only）

The lens is not included.

----------

Lens TMOS10-12030_Ver 2 for TMOS EVK

(Patented Lens for wall-mounted movement/presence detector, optimized for TMOS sensor)

  This document specifies TMOS sensor STHS34PF80 from STMicroelectronics, PCB TMOS_34PF80Rev2.1_noled_FrontCable and Lens TMOS10-12030_Ver 2   from Fresnel Factory Inc.

 1. Dimension and orientation of TMOS10-12030_Ver 2 lens

To download 2D drawing above, see 4. Related documents

To download 3D drawing above, see 4. Related documents

STHS34PF80 sensor

Please Note, that Center of Optical Window of the Sensor must be coincident with axis of symmetry of the Lens

PCB TMOS_34PF80Rev2.1_noled_FrontCable

       4. Related documents

https://drive.google.com/file/d/1KRWnhTdmAdIVd_EzZE9_JRmTw5zJ-zE8/view?usp=sharing

      - 3D drawing with geometric information between lens and sensor

https://drive.google.com/file/d/1jxZSI298dnqak0WwkGXdGBJSVZ53CpCp/view?usp=sharing

     - 3D printing housing

        Part 1

https://drive.google.com/file/d/1gRLProJSniz-w73UoOP3jUCJCDAWmtuV/view?usp=sharing

          Part 2

https://drive.google.com/file/d/1ifLi_9dXg2PMuxtvUOR00OGqNd8uZ_bV/view?usp=sharing

          Part 3

https://drive.google.com/file/d/1kX6LlXAk8CNt7Qe363yhO-WZ90OMo1x0/view?usp=sharing
