TMOS10-12030_Ver 2 for TMOS sensor STH34PF80(Include adhesive)

$5⁰⁰

Votre rabais de quantité:

Quantité

10+

100+

Prix

$5.00

$4.00

En stock

Période de retour: 10 jours

+ −

Shipping method

Payment options

Our advantages

Best optical performance at IR
Qualified with global buyers
Handful experience with R&D

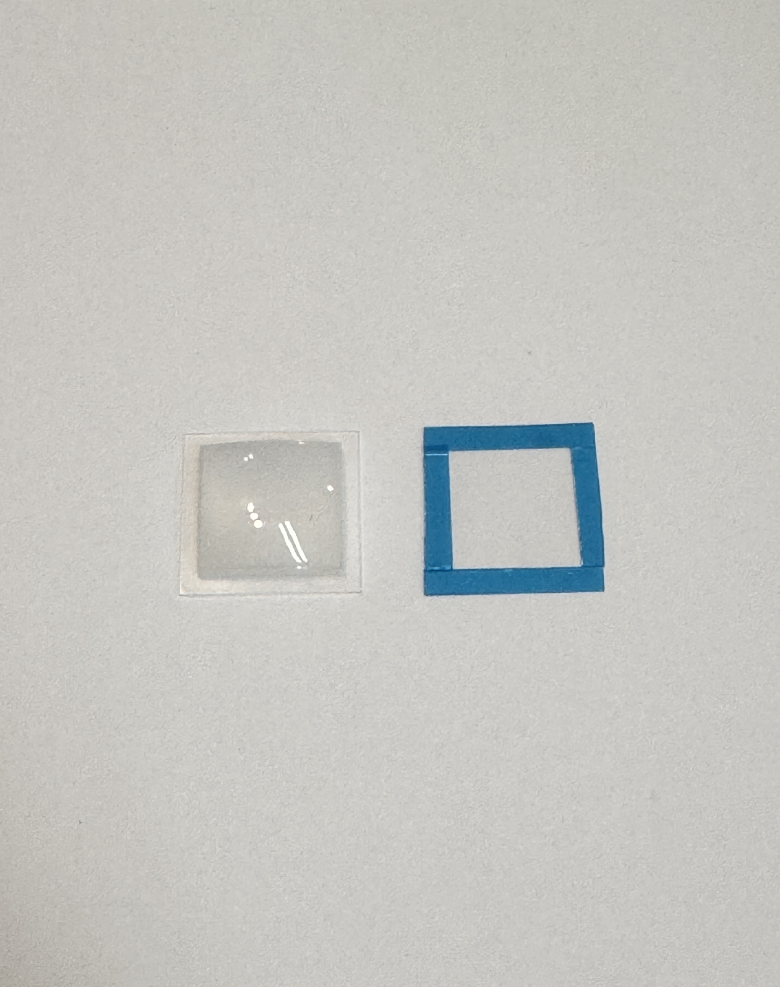

ColorWHITE MaterialPoly FIR200 Size19.5mm*20.5mm

TMOS10-12030_Ver 2 for TMOS sensor STH34PF80(Include adhesive), image

Description
Features
Attachments

Lens TMOS10-12030_Ver 2 for TMOS EVK

(Patented Lens for wall-mounted movement/presence detector, optimized for TMOS sensor)

This document specifies TMOS sensor STHS34PF80 from STMicroelectronics, PCB TMOS_34PF80Rev2.1_noled_FrontCable and Lens TMOS10-12030_Ver 2 from Fresnel Factory Inc.

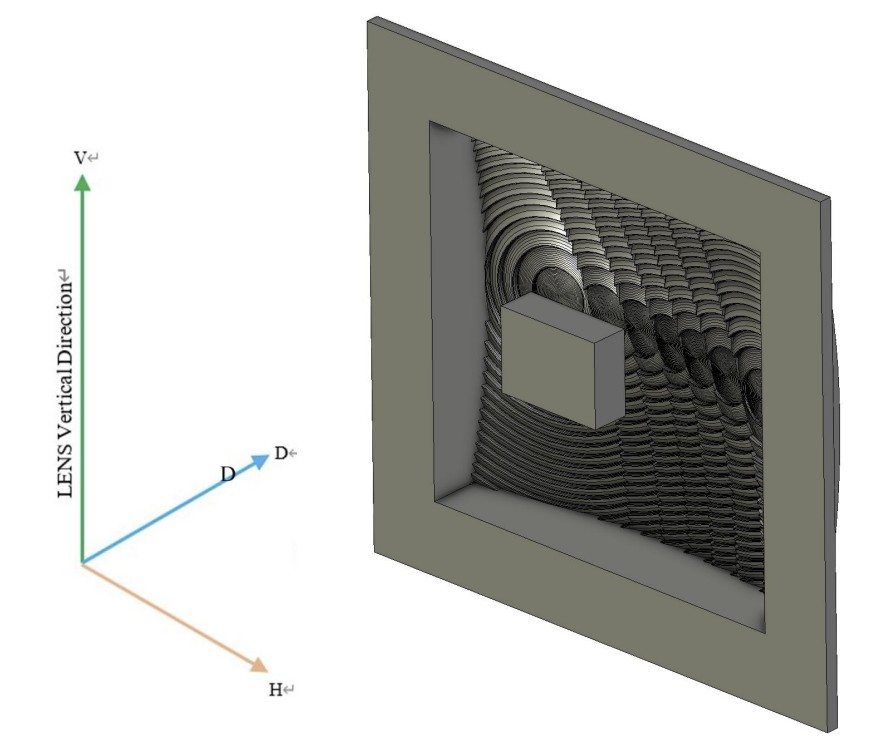

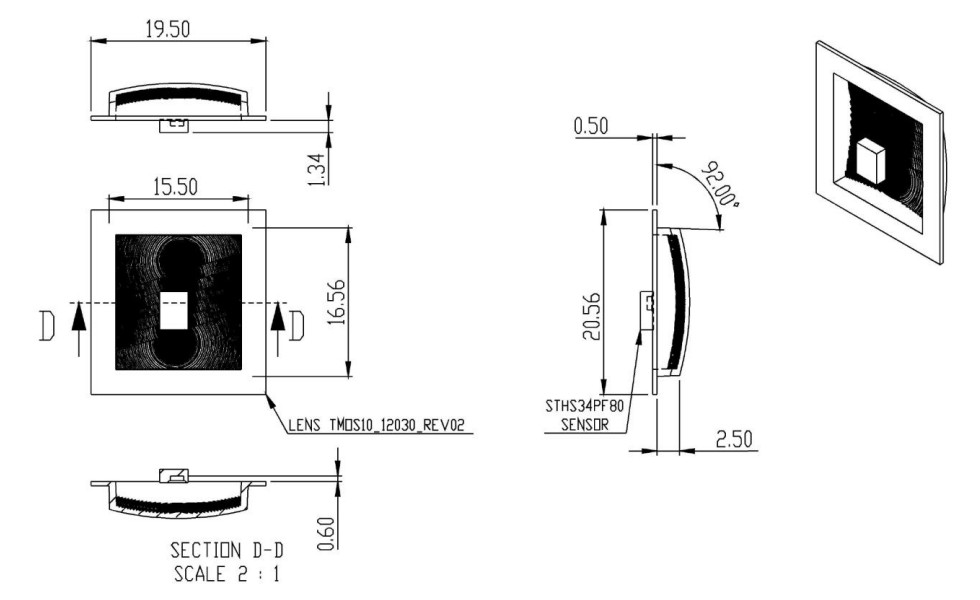

1. Dimension and orientation of TMOS10-12030_Ver 2 lens

To download 2D drawing above, see 4. Related documents

To download 3D drawing above, see 4. Related documents

STHS34PF80 sensor

Please Note, that Center of Optical Window of the Sensor must be coincident with axis of symmetry of the Lens

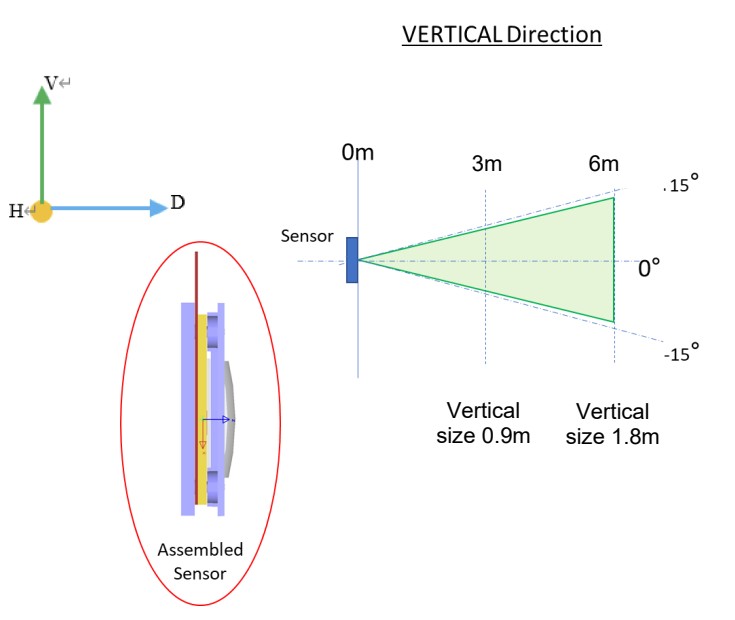

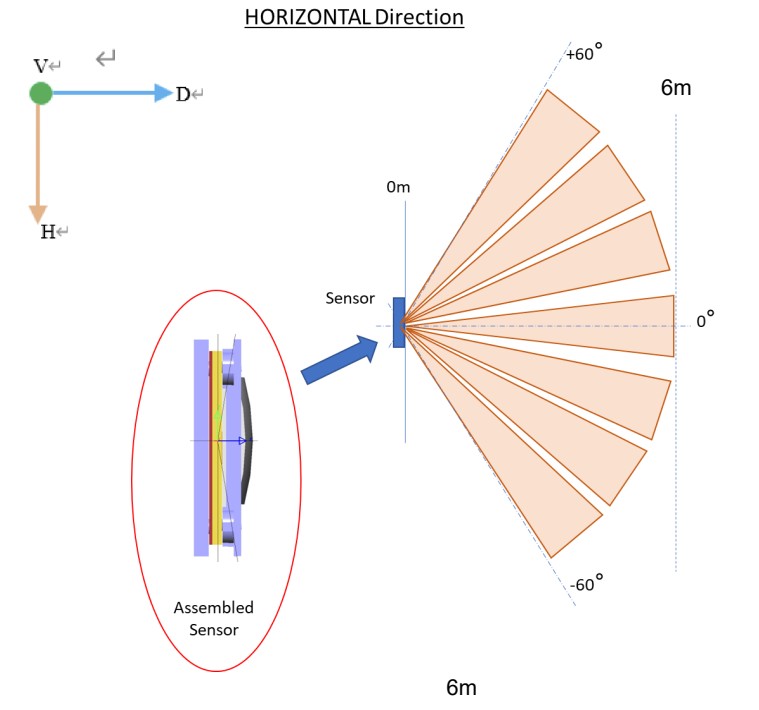

2. Detectable Range and Field of View

3. Housing for EVK with PCB (TMOS_34PF80 Rev2.1_noled_FrontCable)

To download 3D STL file for 3D printing below, see 4. Related documents

You can also purchase housings without lens from here(Click).

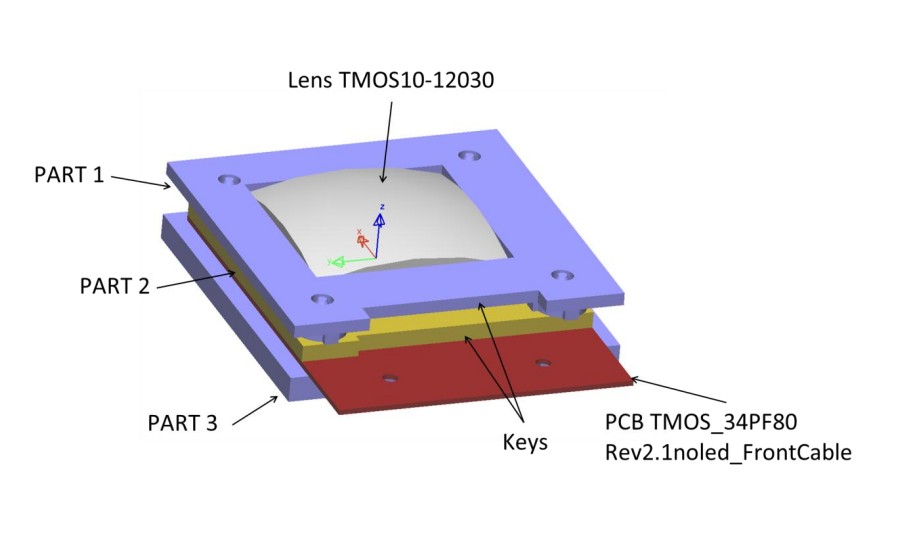

The housing consists 3 Parts with Directional Keys. All keys must be faced to the PCB connector (see picture below). Housing fastened by 4 Philips self-tapping Screws M2x8.

PCB TMOS_34PF80Rev2.1_noled_FrontCable
