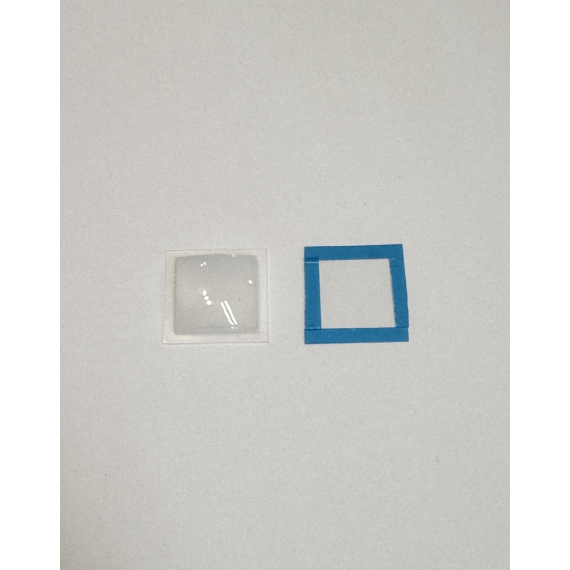

TMOS10-12030_Ver 2 for TMOS sensor STH34PF80(Include adhesive)

$500
Our quantity discounts:
Quantity
10+
100+
Price
$5.00
$4.00
10 days
+
Add to wish list
Shipping method
Payment options
Our advantages
  • Best optical performance at IR
  • Qualified with global buyers
  • Handful experience with R&D
ColorWHITE MaterialPoly FIR200 Size19.5mm*20.5mm



Adhesive datasheet to be update...

--------------------------------------------------------------------------------

Lens TMOS10-12030_Ver 2 for TMOS EVK

(Patented Lens for wall-mounted movement/presence detector, optimized for TMOS sensor)





  This document specifies TMOS sensor STHS34PF80 from STMicroelectronics, PCB TMOS_34PF80Rev2.1_noled_FrontCable and Lens TMOS10-12030_Ver 2   from Fresnel Factory Inc.



 1. Dimension and orientation of TMOS10-12030_Ver 2 lens



To download 2D drawing above, see 4. Related documents






To download 3D drawing above, see 4. Related documents











STHS34PF80 sensor

Please Note, that Center of Optical Window of the Sensor must be coincident with axis of symmetry of the Lens




         2. Detectable Range and Field of View










        3. Housing for EVK with PCB (TMOS_34PF80 Rev2.1_noled_FrontCable)
                 To download 3D STL file for 3D printing below, see 4. Related documents
                  You can also purchase housings without lens from here(Click).
                The housing consists 3 Parts with Directional Keys. All keys must be faced to the PCB connector (see picture below). Housing fastened by 4 Philips                  self-tapping Screws M2x8.




PCB TMOS_34PF80Rev2.1_noled_FrontCable









       4.Related documents

     - 2D drawing

https://drive.google.com/file/d/1KRWnhTdmAdIVd_EzZE9_JRmTw5zJ-zE8/view?usp=sharing

      - 3D drawing with geometric information between lens and sensor

https://drive.google.com/file/d/1jxZSI298dnqak0WwkGXdGBJSVZ53CpCp/view?usp=sharing

     - 3D printing housing

         Part 1

https://drive.google.com/file/d/1gRLProJSniz-w73UoOP3jUCJCDAWmtuV/view?usp=sharing

           Part 2

https://drive.google.com/file/d/1ifLi_9dXg2PMuxtvUOR00OGqNd8uZ_bV/view?usp=sharing

            Part 3

https://drive.google.com/file/d/1kX6LlXAk8CNt7Qe363yhO-WZ90OMo1x0/view?usp=sharing





                                                                                                                                                                                                                                                      Contact

Fresnel Factory Inc.

Ashton Myung KIM

ashton@fresnelfactory.com

+82 10-5248-4630



Color
  • WHITE
Material
  • Poly FIR200
Size
19.5mm*20.5mm
Find similar

Datasheet_TMOS10-12030_STHS34PF80_241218 (Datasheet_TMOS10-12030_STHS34PF80_241218.pdf, 783 Kb) [Download]
