PF63-10 for TMOS EVK
(Long range narrow detection lens)

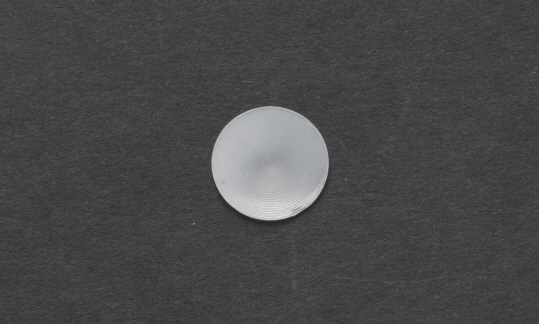

This document specifies TMOS sensor STHS34PF80 from STMicroelectronics and Lens
PF63-10 from Fresnel Factory Inc.
PF63-10 is suitable for people counter, narrow and long-distance detection.
Detection performance can be different according to test setting and room condition. The performance in this document is based on room temperature 25 Celsius,
- Dimension of PF63-10
- Detectable Field of View and distance
- Housing for EVK with front connector
Please download 3D STP file for 3D printing in link below.
|
Part 1 https://url.kr/3gk2lu |
Part 2 https://url.kr/oj3pku |
|
|
|
Fastened by 4 Philips self-tapping Screws M2x6
PART 2
- Housing for EVK with Back side connector
Please download 3D STP file for 3D printing in link below.
|
Part 1 https://url.kr/m8rl51 |
Part 2 https://url.kr/mtx9ni |
|
|
|
Fastened by 4 Philips self-tapping Screws M2x6
PART 2
ASSEMBLED HOUSING
