TMOS63-10 housing for TMOS sensor STHS34PF80（housing only）
Shipping method
Payment options
Our advantages
- Best optical performance at IR
- Qualified with global buyers
- Handful experience with R&D
ColorWHITE
MaterialPoly FIR200
SizeØ10
Here is only the purchase of Housing, doesn't include lens！
Lens TMOS63-10 for TMOS EVK
(Long range narrow detection lens)
This document specifies TMOS sensor STHS34PF80 from STMicroelectronics PCB TMOS_34PF80Rev2.1_noled_FrontCable and Lens
TMOS63-10 from Fresnel Factory Inc.
TMOS63-10 is suitable for people counter, narrow and long-distance detection.
Detection performance can be different according to test setting and room condition. The performance in this document is based on room temperature 25 Celsius,
Dimension and orientation of TMOS63-10 lens
|
Lens TMOS63-10 |
Detectable Range and Field of View.
Lens Housing for EVK with PCB TMOS_34PF80 Rev2.1_noled_FrontCable
Please download 3D STP file for 3D printing in link below.

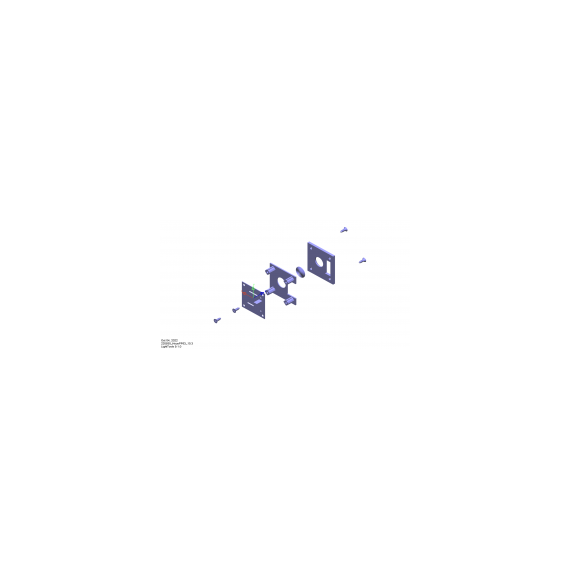

Housing consists 3 Parts with Directional Keys. All keys must be faced to the PCB connector (see picture below). Housing fastened by 4 Philips self-tapping Screws M2x8.
PCB TMOS_34PF80Rev2.1_noled_FrontCable
|
Lens TMOS63-10 |
